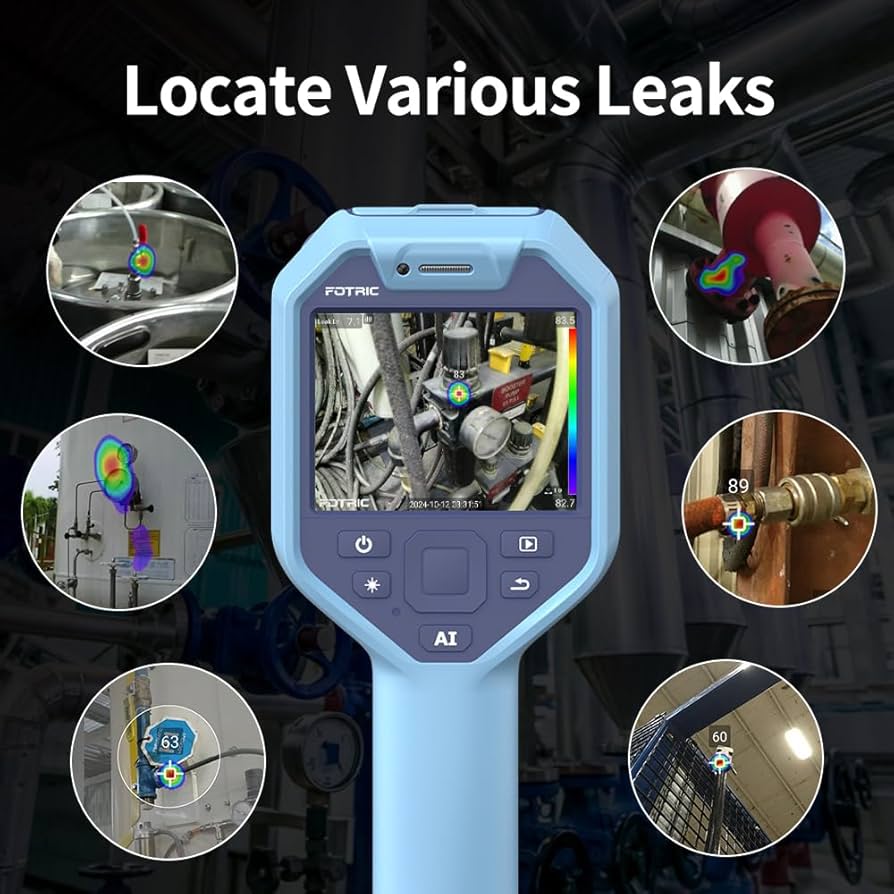

【旺群】FOTRIC TD2 聲學成像儀
立即詢價
加入詢價車
產品價格：$70000元起
☉ 產品特色
☉ 產品規格
| Model | FOTRIC TD2 |
|---|---|
| Microphone channel | 64 MEMS digital microphones |
|
Acoustic Image Field of View (FOV) |
66° × 52° |
|
Sound Sampling Rate |
200kHz |
|
Acoustic Refresh Rate |
25Hz |
|
Operating Distance |
0.3~200m(1~626ft） |
| Frequency Range | 2~100kHz |
|
Detection Mode |
Leakage mode: display leakage level on device |
| Analysis Software | AnalyzIR Professional Acoustic Analysis Software |
| Display Screen | 3.5-inch, 640 x 480 pixels, IPS LCD touch display with Gorilla Glass explosion-proof cover |
| Image Modes | Single-source mode, multi-source mode, hologram mode |
| Digital Camera | 13 Megapixels, Industrial-Grade Digital Camera |
| Size | 243mm*95mm*150mm |
| Weight | 770g |
| Acoustic Image Focus | Masks surrounding areas, focus only on the acoustic image of the focused area |
| On-device Analysis | The device is capable of directly analyzing acoustic images |
| Gray Scale Background | Display digital camera images in grayscale |
| Favorites | Click the favorite button to save the favorite status to acoustic images and holographic acoustic videos, highlighted in the gallery preview screen, and later filter by favorite status |
| Storage Card |
TF card, hot-swappable, maximum support 1TB |
| Battery Operating Time | Actual usage time depends on environmental and usage conditions |
| Battery Type | 3.6V, 5000mAh Rechargeable Lithium Battery, Field-Replaceable |
| Supported Languages | English, Traditional Chinese, Spanish, Korean, German, Portuguese, Italian, French, Thai |
| Standard Configuration | Acoustic imaging camera main unit, rechargeable lithium battery * 1, power adapter, USB Type-C to USB cable, 32G TF card, wrist strap, document bag (packing list, quick start guide), outer packaging box |
*Some features might be added or slightly altered according to the region and country
