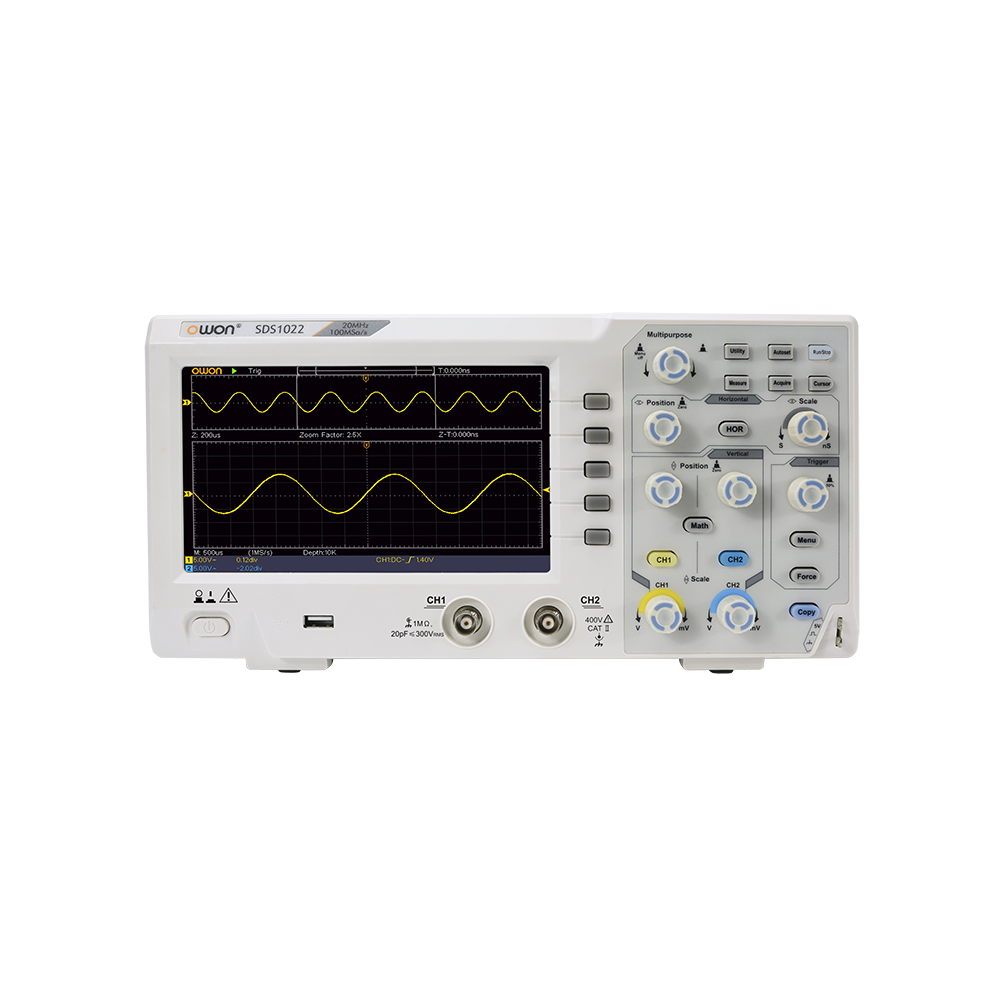

【OWON】SDS1000系列 超經濟便攜示波器
立即詢價
加入詢價車
產品價格：$7,715元起

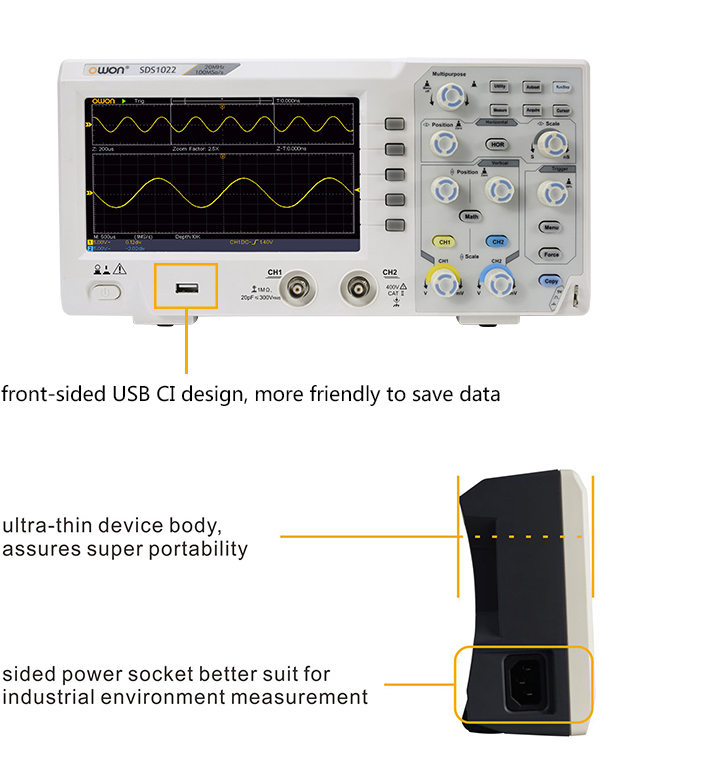

☉ 產品特色
☉ 產品規格
| Model | SDS1022 | SDS1052 | SDS1102 | |
|---|---|---|---|---|
| Bandwidth | 20MHz | 50MHz | 100MHz | |
| Sample Rate | 100MS/s | 500MS/s | 1GS/s | |
| Horizontal Scale (s/div) | 5ns/div - 1000s/div, step by 1 - 2 - 5 | 2ns/div - 1000s/div, step by 1 - 2 - 5 | ||
| Channel | 2 | |||
| Display | 7" color LCD, 800 x 480 pixels | |||
| Input Coupling | DC, AC , and GND | |||
| Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) | |||
| Vertical Sensitivity | 5mV/div - 5V/div (at input) | |||
| Trigger Type | Edge, Video | |||
| Trigger Mode | Auto, Normal, and Single | |||
| Waveform Math | ＋, －, x, ÷, invert, FFT | |||
| Fuse | 2A, T class, 250V | |||
| Dimension (W x H x D) | 301 x 152 x 70 mm | |||
| Device Weight | 1.10 kg | |||
